Bombardier CRJ-900 System Diagrams

Learn the main aircraft systems of the Bombardier CRJ-900 with this pilot training poster set

× Close Request a Demo

Bombardier CRJ-900 System Diagrams

System Diagrams

Overview

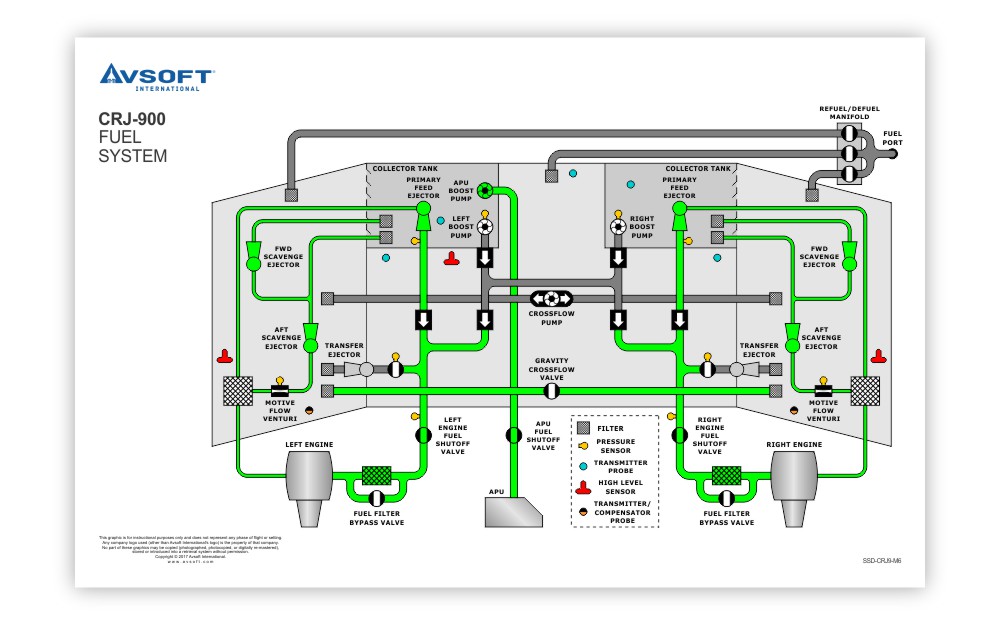

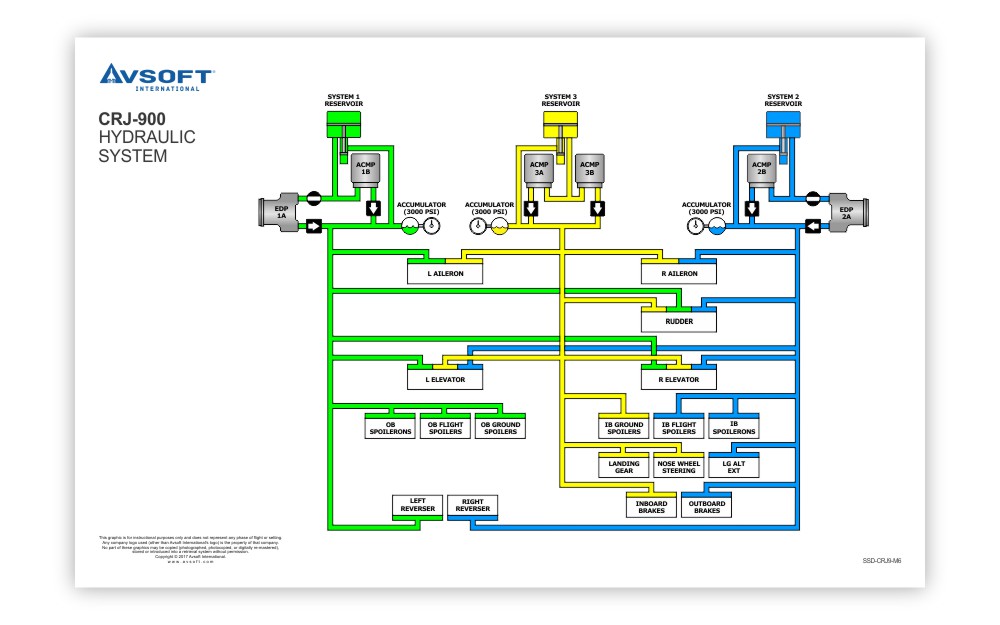

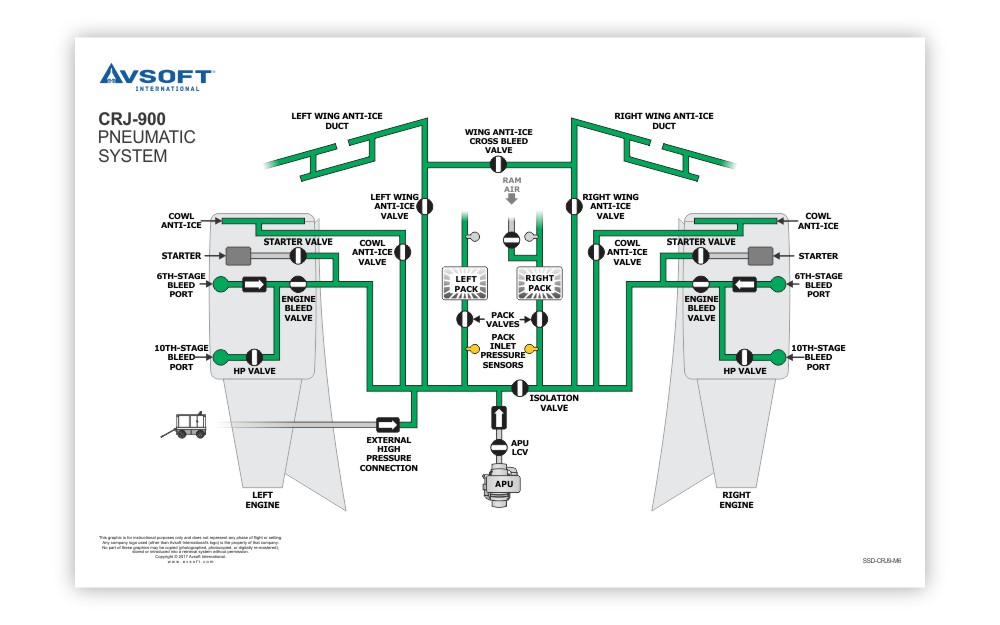

Avsoft’s CRJ-900 System Diagrams poster set includes the following CRJ-900 aircraft system diagrams: Air Conditioning, Electrical, Engine Oil, Fuel, Hydraulic, and Pneumatic. Avsoft’s full color aircraft system diagrams poster sets are drawn in a clear, concise manner so that they are easy to understand and provide a quick overview of each aircraft system. System diagram poster sets are available in three different sizes.

These diagrams can also be found in Avsoft’s CRJ-900 Systems Course, an eLearning Course which explores all the major CRJ-900 aircraft systems, including all the components, operations, controls, and indications involved with each system. This system diagrams poster set makes a nice addition to Avsoft’s CRJ 900 Cockpit Poster, allowing users to familiarize themselves with the specific layout of the CRJ-900 cockpit panels, as well as the major CRJ-900 aircraft systems.

Product Images

Options

M-Size Poster Set
includes six sheets; each sheet measures 11″ x 17″ (27.94 cm x 43.18 cm)

S-Size Poster Set
includes six sheets; each sheet measures 17″ x 36″ (43.18 cm x 91.44 cm)

L-Size Poster Set
includes six sheets; each sheet measures 36″ x 48″ (91.44 cm x 121.92 cm)

Bombardier CRJ-900 System Diagrams

System Diagrams
