Embraer E190

Learn the main aircraft systems of the Embraer E190 with this pilot training poster set

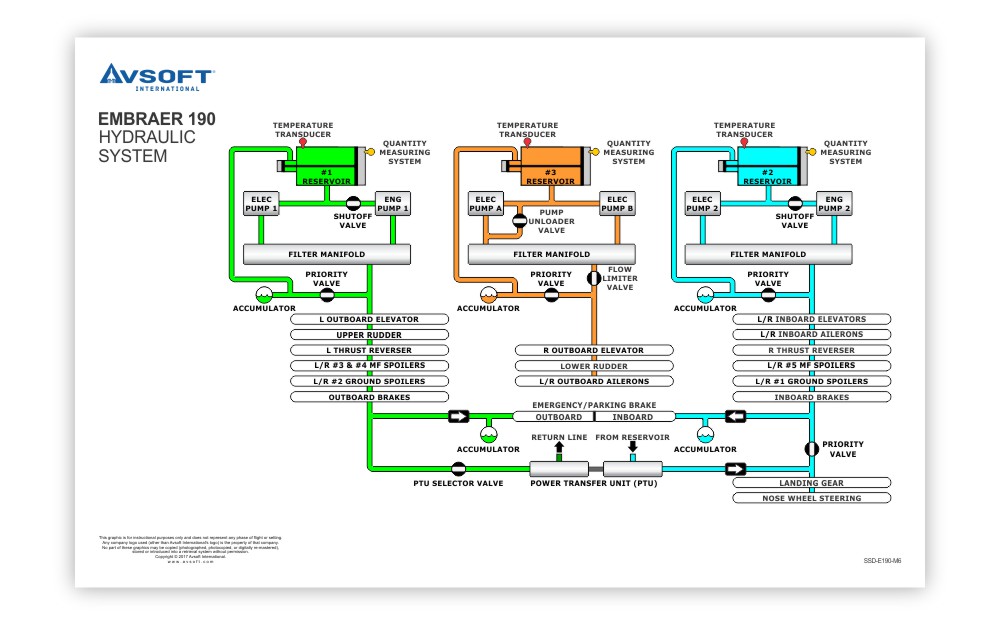

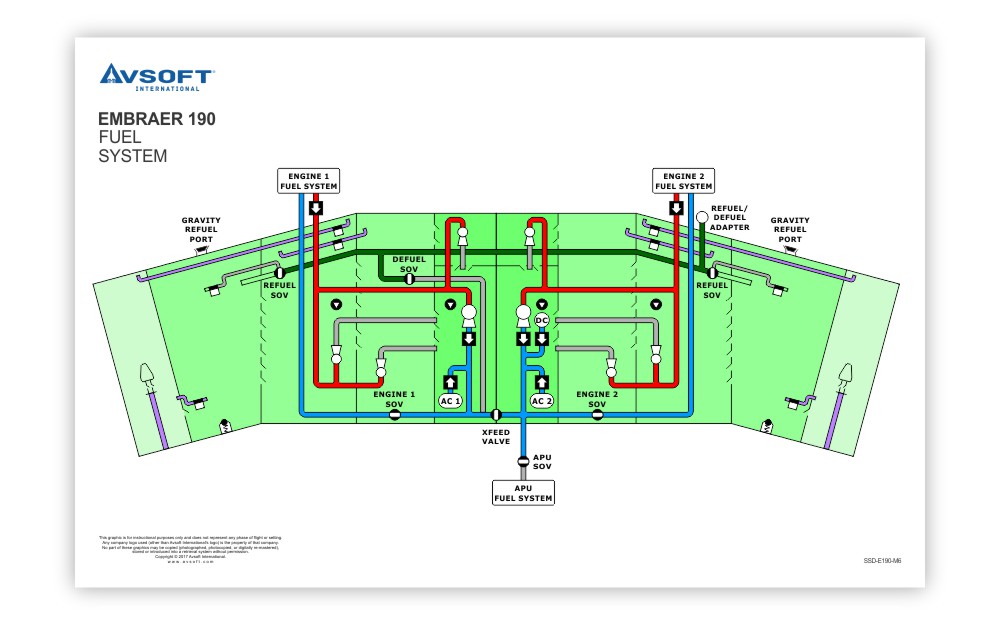

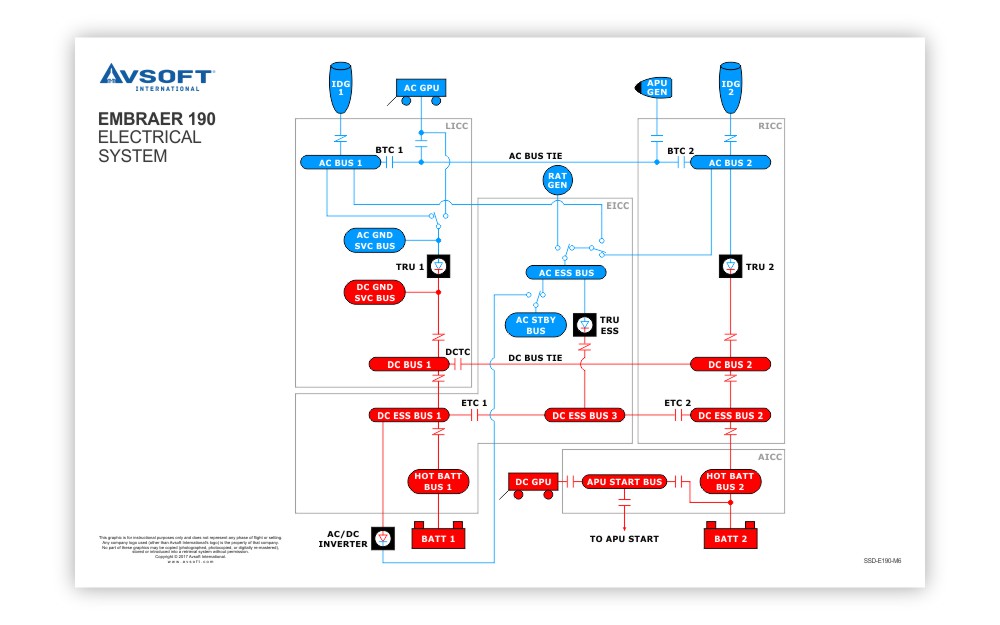

Avsoft’s Embraer E190 System Diagrams poster set includes the following E190 aircraft system diagrams: Air Conditioning, Brakes, Electrical, Fuel, Hydraulic, and Pneumatics. Avsoft’s full color aircraft system diagrams poster sets are drawn in a clear, concise manner so that they are easy to understand and provide a quick overview of each aircraft system. System diagram poster sets are available in three different sizes.

These diagrams can also be found in Avsoft’s Embraer E190 Systems Course, an eLearning Course which explores all the major E190 aircraft systems, including all the components, operations, controls, and indications involved with each system. The E190 system diagrams poster set makes a nice addition to Avsoft’s Embraer E190 Cockpit Poster (which includes the flight instruments, the center pedestal, and the overhead panel), allowing users to familiarize themselves with the specific layout of the E190 cockpit panels, as well as the main aircraft systems.

See the Embraer 190 Aircraft Systems Training Course by Avsoft


Product Images

  • product image
  • product image
  • product image


M-Size Poster Set

includes six sheets; each sheet measures 11″ x 17″ (27.94 cm x 43.18 cm)

S-Size Poster Set

includes six sheets; each sheet measures 17″ x 36″ (43.18 cm x 91.44 cm)

L-Size Poster Set

includes six sheets; each sheet measures 36″ x 48″ (91.44 cm x 121.92 cm)
